SEPTIC AND WASTEWATER PROJECTS
Multi-Family Work Camp
Local farmer needed a treatment system for his work camp. The system needed to be flexible in design and accommodate the entire complex. The system uses fiberglass reinforced polyester (FRP) tanks from Containment Solutions, Inc. The treatment system is an Orenco AdvanTex® Treatment System using AX-100 treatment modules.
Design Peak = 44,000 gpd
Average Daily = 22,000 gpd

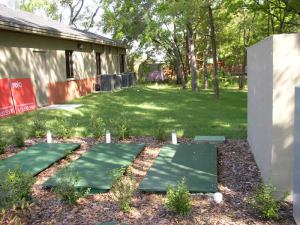

Lutz Medical Center
Doctors’ office and professional office complex. The owners could not fit the conventional septic system on the lot and accommodate the parking spaces needed, square footage of building, etc. SWS worked with the owners to accommodate an Advantex Treatment System which reduced the size of the footprint to accommodate the existing civil plan. The system includes 24/7 monitoring through control panel.
Peak Capacity = 3,000 gpd
Average Daily = 1,500 gpd

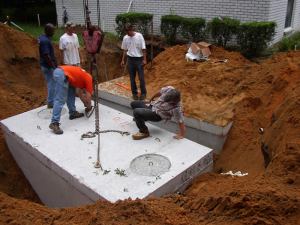

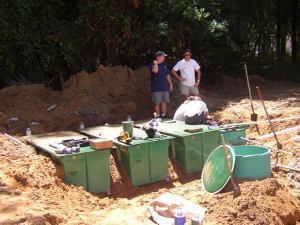

Brownell Hair Salon
An AdvanTex Treatment System replaced a conventional septic system that was exceeding design capacity and had failed a few times in the past few years. The system had limited space for repair. Tankage was placed in parking lot and Biotube Filters in series were placed in the primary treatment. A 3 Pod AX-20 AdvanTex Treatment System was added to the system. SWS worked with the installer and owner to alleviate problems with repeat failures and space constraints.
Design Capacity = 3,000 gpd
Actual Flows = 1,300 gpd
Carol and Ron’s MHP

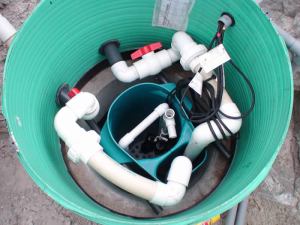

Low pressure dosing system designed for mobile home park. The owners were having problems getting a design to accomodate their mobile home park. The system was nestled into the project even with high watertables. Orenco ProSTEP pump package provided the needed dynamic head and gallons per minute required by the system configuration.
Design Capacity = 3,400 gpd

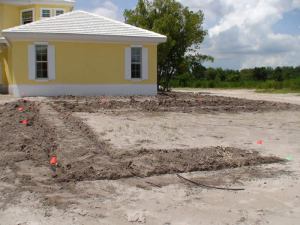

Lutz Residential System
Aesthetics and Green Principles led to the use of an Advanced Treatment System for this home. The owners wanted a system that would provide supplemental irrigation for their landscaping. The system was designed with AdvanTex Treatment and Geoflow Subsurface Drip Irrigation.
Daycare Facility in Lutz, FL
The owner of this property could not fit the building, parking lot, and septic system on their lot. However, with the use of the Advantex Treatment System the owners were able to make the lot buildable. The design implemented reduced the footprint of the wastewater system by 65% from a conventional septic tank and drainfield system. The owners wanted a system that would provide supplemental irrigation for their landscaping. The system was designed with AdvanTex Treatment and Geoflow Subsurface Drip Irrigation.
Design Capacity = 3,500 gpd

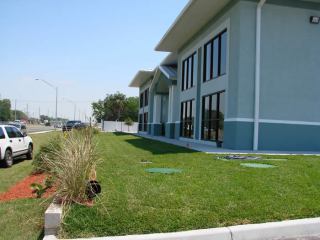

Carpet and Tile Retail Center in Ruskin, FL
The owner of this property could not fit the building, parking lot, and septic system on their lot. However, with the use of the Advantex Treatment System the owners were able to make the lot buildable. The design implemented reduced the footprint of the wastewater system by 65% from a conventional septic tank and drainfield system. The owners wanted a system that would provide supplemental irrigation for their landscaping. The system was designed with AdvanTex Treatment and Geoflow Subsurface Drip Irrigation.
Design Capacity = 500 gpd

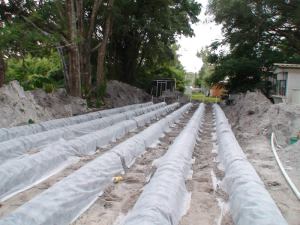

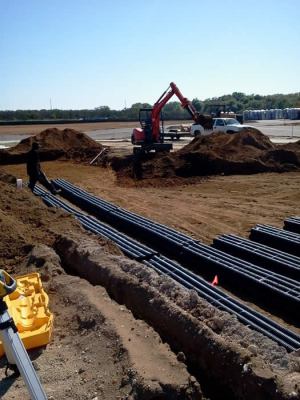

Commercial Retail Center Septic System in Tampa, FL
The owner of this property could not fit the building, parking lot, and septic system on their lot. However, with the use of PTI Multi Pipe the owners were able to make the lot buildable. The design implemented reduced the footprint of the wastewater system by 33% from a conventional septic tank and drainfield system using rock and pipe. The system was designed with low pressure dosing.
Design Capacity = 1,600 gpd
